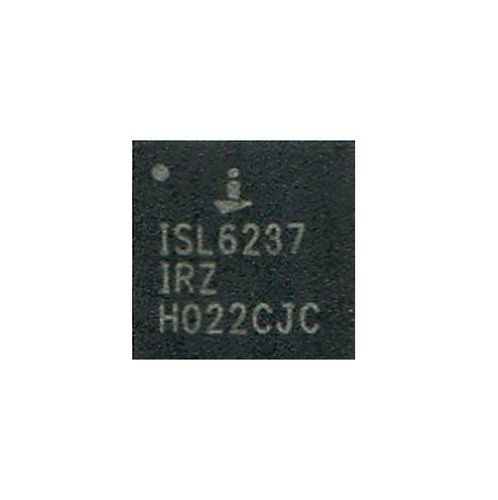

ISL6237IRZ ISL6237 IRZ QFN32

ISL6237IRZ ISL 6237 IRZ QFN32

Specyfikacja :

• Typ produktu: PWM IC
• Obudowa: QFN32
• Wide Input Voltage Range 5.5V to 25V
• Dual Fixed 1.05V/3.3V and 1.5V/5.0V Outputs or Adjustable 0.7V to 5.5V (SMPS1) and 0.5V to 2.5V (SMPS2), ±1.5% Accuracy
• 1.7ms Digital Soft-Start and Independent Shutdown
• Fixed 3.3V/5.0V, or Adjustable Output 0.7V to 4.5V, ±1.5% (LDO): 200mA
• 2.0V Reference Voltage
• Constant ON-TIME Control with 100ns Load-Step Response
• Selectable Switching Frequency
• rDS(ON) Current Sensing
• Programmable Current Limit with Foldback Capability
• Selectable PWM, Skip or Ultrasonic Mode
• BOOT Voltage Monitor with Automatic Refresh
• Independent POK1 and POK2 Comparators
• Soft-Start with Pre-Biased Output and Soft-Stop
• Independent ENABLE
• High Efficiency - Up to 97%
• Very High Light Load Efficiency (Skip Mode)
• 5mW Quiescent Power Dissipation
• Thermal Shutdown
• Extremely Low Components Count
